- JHM, ZLYJ, ZSYJ series reducer is designed for plastic screw extruder with high precision hard tooth surface with thrust seat transmission device.

- The product design adopts the technical scope prescribed by JB/T9095.1-1999.

- The main transmission parts are made of high quality alloy steel, the gear is made by carburizing, quenching and grinding technology, the accuracy is (GBl0095-88).

- The front section of the hollow output shaft is equipped with a super-sized thrust bearing, which is subject to the working recoil of the screw.

- The machine has the characteristics of small volume, high bearing capacity, smooth transmission, low noise and high efficiency.

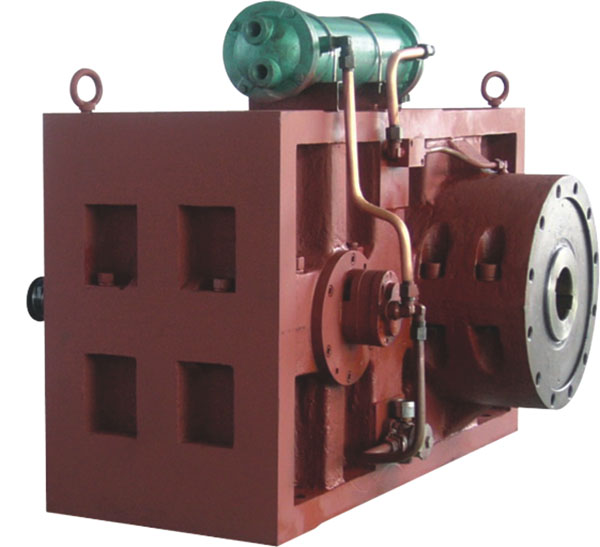

ZLYJ（ZSYJ）Single screw horizontal reducer

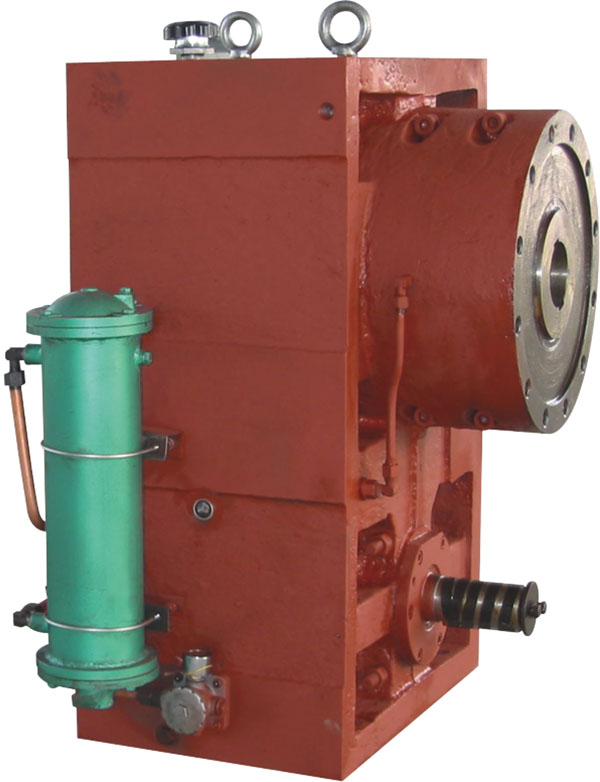

ZLYJ（ZSYJ）Single screw vertical reducer

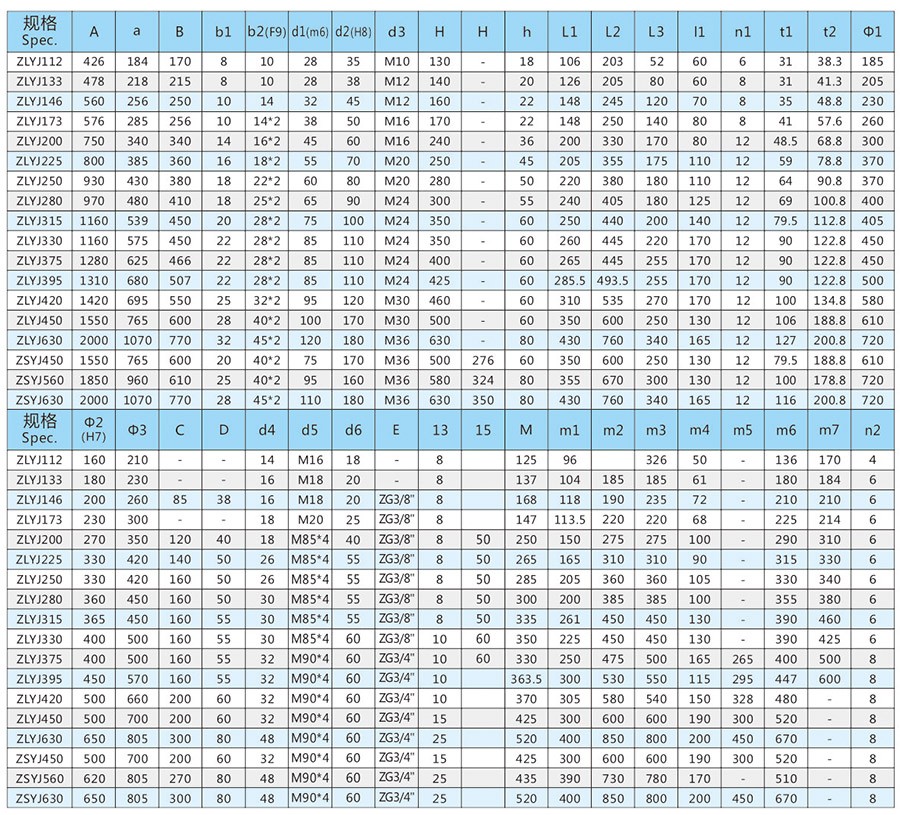

ZLYJ/ZSYJ橡塑機(jī)械齒輪箱外形尺寸圖
